Commercial Wall Art Hanging Systems: French Cleats, Security Hardware & Anti-Theft Mounting for Hotels & Public Spaces
In high-traffic commercial environments—such as hotel guestrooms, casino resort corridors, corporate headquarters, healthcare clinics, and educational campuses—artwork installation involves far more than aesthetic alignment. Commercial wall art mounting requires rigorous engineering to address seismic vibrations, accidental luggage collisions, housekeeping trolley impacts, ADA accessibility clearances, and guest tamper-prevention.

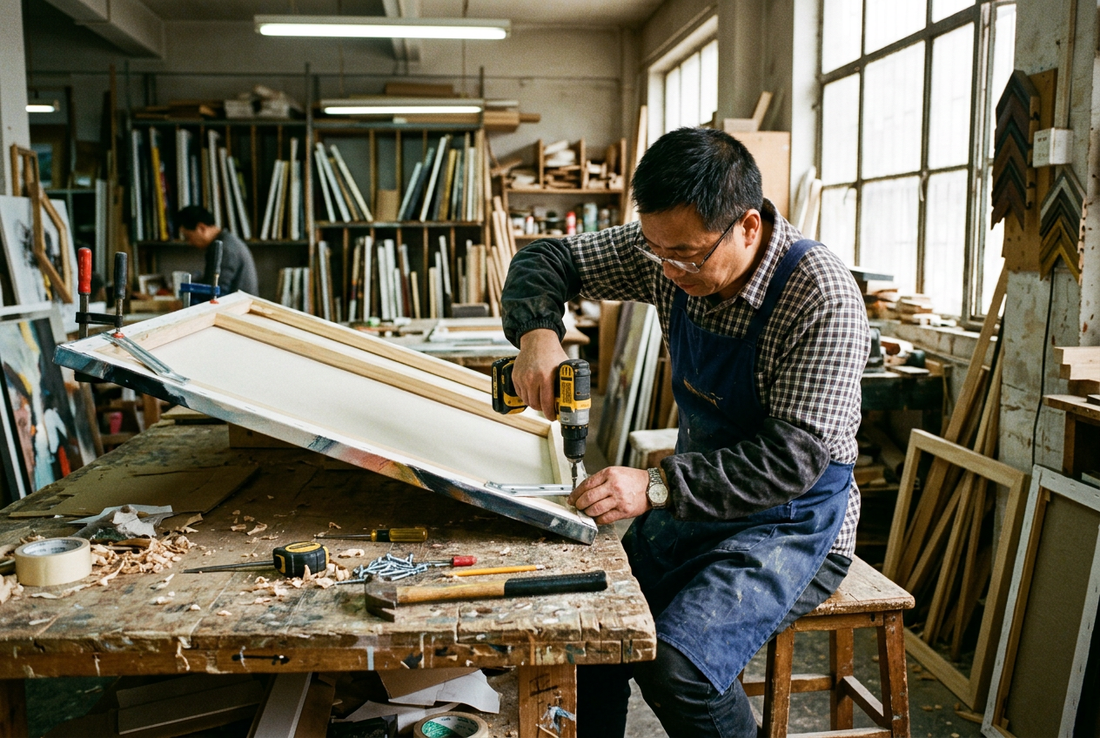

Figure 1: Factory framing workshop: technician installing an architectural extruded aluminum French cleat bracket onto the rear stretcher bar of a commercial framed canvas artwork.
At Decor Art Factory, our 7,000+ ㎡ OEM/ODM manufacturing facility engineers and pre-installs commercial-grade mounting hardware directly on the assembly line. Backed by 10+ years of export manufacturing experience, we ensure that every framed canvas print meets the structural safety and installation speed required by international general contractors and FF&E installers. Below is a complete technical specification guide to commercial wall art hanging hardware.
Commercial Hanging Systems Comparison Matrix
| Hardware System | Load Rating per Unit | Tamper / Anti-Theft Level | Primary Commercial Use Case |
|---|---|---|---|
| Aluminum French Cleat (Z-Bar) | Heavy Duty (Up to 45 kg / 100 lbs) | Moderate (Flush interlocking fit; requires upward lift) | Oversized statement art (120cm+), headboard wall features, and executive boardrooms |
| 3-Point Security T-Lock System | Medium to High (Up to 25 kg / 55 lbs) | Maximum (Locks to wall; requires specialized T-wrench to release) | Hotel guestrooms, public corridors, cruise ship staterooms, and healthcare facilities |
| Heavy-Duty Dual D-Rings | Standard (Up to 15 kg / 33 lbs) | Low (Removable by hand) | Private residences, real estate model home staging, and retail showroom displays |
1. Aluminum French Cleats (Z-Bar Mounting): Flush & Load-Bearing
For oversized canvas art (spans exceeding 120 cm to 250 cm), conventional wire or single-point picture hooks represent a major structural liability. Wire creates forward tilting, concentrates extreme shear stress on anchor drywall plugs, and leaves artwork crooked after minor room vibrations.
Figure 2: Commercial hanging hardware essentials: heavy-duty dual-hole D-rings, interlocking extruded aluminum French cleat profiles, and security T-head screws with locking wrench.
Key Engineering Advantages of French Cleats:
- Continuous Load Distribution: The interlocking 45-degree beveled aluminum extrusion spreads artwork weight across multiple wall studs, safely supporting oversized framed canvas up to 45 kg (100 lbs).
- Zero Forward Pitch (Flush Wall Profile): Cleat mounting pulls the canvas frame completely flat against the wall surface, complying with strict hospitality corridor clearance regulations (ADA 4-inch protrusion limit).
- Lateral Leveling Adjustment: Installers can shift the artwork horizontally along the wall-mounted cleat by several centimeters without redrilling holes, slashing on-site installation labor costs.
2. Anti-Theft Security T-Lock Hardware for Hospitality
In hotels, hospital corridors, and public commercial venues, unsecured wall art is frequently bumped by housekeeping carts or removed without authorization. Commercial brand standards (such as Marriott, Hilton, and Hyatt FF&E specifications) routinely mandate tamper-resistant 3-point security hardware.
How the 3-Point Security System Works:
- Top Mounting Brackets: Two slotted steel brackets are factory-mounted to the upper rear corners of the frame, hooking onto standard wall anchors.
- Bottom Security T-Screw: A specialized steel screw with a horizontal T-shaped head is anchored into the wall at the bottom center.
- 90-Degree Locking Turn: The frame is hung on the top brackets, and the bottom bracket slides over the T-screw head. The installer inserts a thin, specialized security wrench behind the frame, turning the T-screw 90 degrees into the locking slot. Once locked, the artwork cannot be lifted, shifted, or removed without the security key.
3. Factory Installation Tolerances & Pull-Strength Load Testing
To eliminate on-site contractor delays, Decor Art Factory pre-installs all architectural hanging hardware during final assembly in our 7,000+ ㎡ facility.
Figure 3: Quality control testing: technician verifying screw anchor pull-resistance on solid pine stretcher bars using a calibrated mechanical pull-force gauge.
Factory Quality Standards:
- Precision Placement: Cleats and D-rings are aligned with laser leveling guides to maintain a vertical tolerance within ±0.5 mm, ensuring that multi-piece gallery sets hang perfectly level.
- Pre-Drilled Pilot Holes: Hardware screws are driven into kiln-dried solid pine stretcher bars with pre-drilled pilot holes to prevent wood fiber splitting while maximizing thread bite.
- 3x Pull-Force Rating: Every batch undergoes pull-testing using calibrated mechanical force gauges, verifying that mounting brackets withstand at least three times (3x) the total weight of the finished artwork.
Factory Sourcing Specifications & Project Terms
Decor Art Factory provides complete flexibility for commercial buyers, distributors, and hotel project managers:
- Minimum Order Quantity: MOQ starts from 50 pcs per order. Mixed artwork designs, sizes, and hardware configurations are supported within the batch.
- Pre-Production Prototypes: Hardware-equipped sample prototypes dispatched in 3–5 business days for contractor review and mock-up room sign-off.
- Bulk Production: Standard orders completed in 15–20 days.
- Complete Hardware Kits Included: Every carton includes matching wall brackets, heavy-duty drywall anchors, screws, and security locking wrenches.
Specify Commercial Mounting Hardware for Your Project
Contact our engineering team to request sample hardware kits (French Cleats, Security T-Lock Kits, and Heavy-Duty D-Rings) or submit your project schedule for a prompt factory quote.
Get Factory QuoteFrequently Asked Questions (FAQ)
Why do hotels require security T-screw hardware instead of regular picture hooks?
Security T-lock systems lock the artwork to the wall so it cannot be removed without a specialized wrench. This prevents theft, stops guests from shifting artwork out of alignment, and prevents frames from falling if bumped by luggage or housekeeping trolleys.
When should interior designers specify French cleats over D-rings?
French cleats are recommended for any canvas art exceeding 120 cm in width or weighing over 8 kg. They distribute weight evenly across wall studs and keep oversized frames hanging completely flush without tilting forward.
Does the factory pre-install the hanging hardware or ship it loose?
We pre-install all frame-mounted brackets (cleats, top security brackets, or D-rings) in our factory to precise architectural tolerances. Matching wall-side brackets, drywall anchors, screws, and security keys are packed in labeled polybags inside each carton.
Can we mix different hanging systems within the 50-piece MOQ?
Yes. You can specify security T-lock hardware for corridor pieces and French cleats for large lobby artworks within your 50-piece minimum order.
