Commercial Canvas Wall Art Quality Control: A Factory Step-by-Step Inspection Checklist from Pre-Press to Container Loading
For international furniture retailers, commercial interior procurement agencies, and hospitality project directors sourcing volume canvas wall art from China, factory quality control (QC) is the single most critical risk-mitigation factor. When shipping full container loads across oceans, defective color shifts, warped stretcher bars, loose corner joints, or inadequate transit packaging can result in thousands of dollars in unsellable stock and project installation delays.

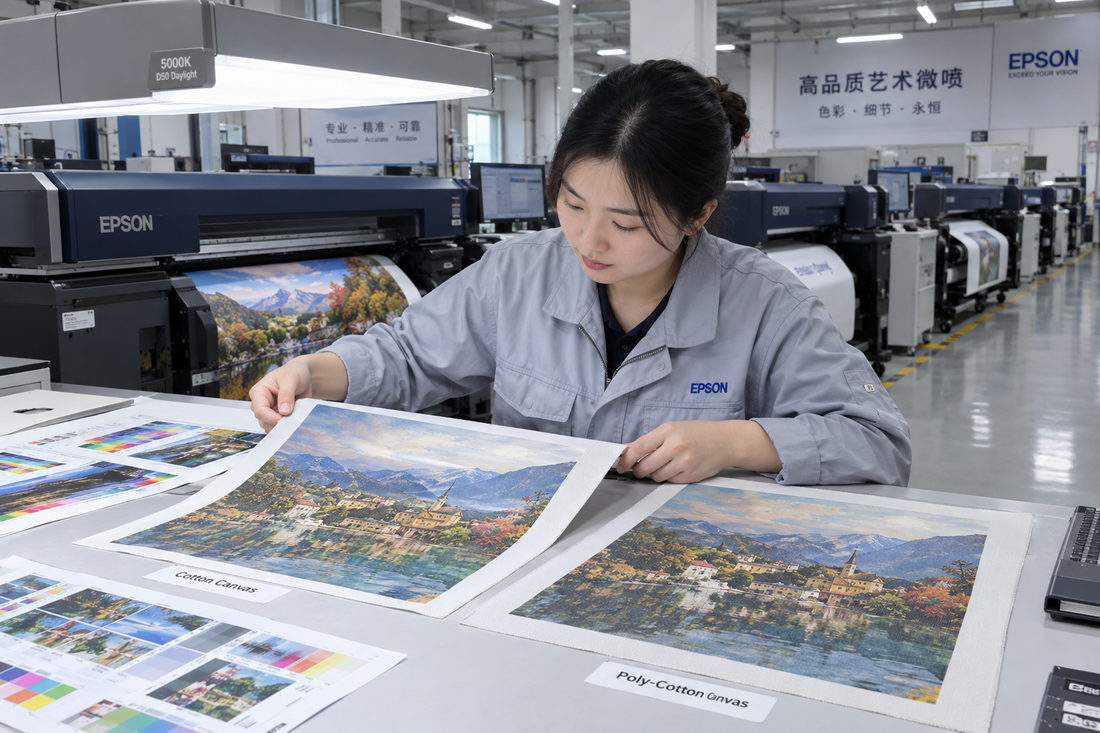

Figure 1: Quality technician auditing pigment saturation, color consistency, and nozzle alignment on an industrial Epson giclée printing line.
At Decor Art Factory, our 7,000+ ㎡ OEM/ODM manufacturing facility specializes exclusively in stretched canvas wall art, framed prints, and gallery wall sets. Operating 21 professional Epson giclée printers and precision automated framing lines, our quality team inspects every batch across a rigorous 5-stage protocol—from raw digital files to palletized container dispatch. Below is our complete factory-grade inspection checklist, providing foreign buyers with full transparency into how commercial canvas art is manufactured and verified to international standards.
The 5-Stage Canvas Wall Art QC Matrix
| Production Stage | Inspection Focus & Tools | Factory Acceptance Standard | Action on Defect |
|---|---|---|---|
| Stage 1: Pre-Press File Audit | RIP pre-flight software, Adobe RGB/CMYK proofing, X-Rite spectrophotometer | Resolution ≥300 DPI at full scale; Delta-E color variance <1.5 against master proof | Re-profile ICC curve; client file re-submission required if pixelated |
| Stage 2: Giclée Print Run | Epson UltraChrome 12-color archival pigment, D50 5000K daylight inspection booth | Zero horizontal banding, zero ink bleed, 100% nozzle verification, 380+ GSM substrate weight | Immediate head cleaning and printhead alignment; defective panels recycled |
| Stage 3: Wood Stretcher & Tension | Pinless electronic wood moisture meter, precision steel square, pneumatic tension rig | Wood moisture 8%–12%; corner squareness 90° ±0.5°; drum-tight tension (12–15 N/cm) | Reject warped timber batches; restretch canvas if drum tension fails tap test |
| Stage 4: Outer Framing & Hardware | CNC double-mitre saw, pneumatic V-nail joiner, hanging hardware pull-test gauge | Miter corner gap <0.2mm; shadow gap consistency 5mm ±0.5mm; hardware pull-rated 3x frame weight | Re-cut or re-clamp frame profile; replace stripped anchor screws |
| Stage 5: Packaging & Pallet Loading | ISTA-standard drop testing rig, 5-ply carton burst strength gauge, shrink-wrap audit | Pass 10-point freefall drop test without structural damage; desiccants installed; plastic-banded pallets | Repackage with reinforced EPE corner caps; adjust carton dimensions |
Stage 1 & 2: Pre-Press File Validation & Archival Giclée Printing
Color fidelity is the hallmark of fine art canvas reproduction. In volume commercial production, slight color shifts between units or production runs will cause batch rejection by interior design clients.
Digital File & RIP Auditing:
Before any production printer fires, our pre-press technicians inspect incoming digital art files. We verify minimum resolution (300 DPI at true reproduction dimensions), check bleed margins for gallery wrapping (typically 4.5 cm to 5.5 cm), and apply custom ICC color profiles calibrated specifically to our 380 GSM poly-cotton canvas and Epson 12-color pigment ink systems.
5000K Daylight Proofing & Delta-E Tolerance:
Color approval takes place in a standardized D50 (5000K) color-viewing light booth. We utilize digital spectrophotometers to measure color patches. In commercial manufacturing, human eyes can detect color variances above Delta-E 2.0; our factory standard enforces a strict Delta-E < 1.5 variance between physical samples and mass-production panels.
Stage 3: Wood Stretcher Bar Moisture & Tension Control
Warped frames and sagging canvas represent the most common quality failures from substandard manufacturers. When timber with excessive internal moisture is shipped into arid climates (such as Nevada, Arizona, or the Middle East) or into heavily air-conditioned hotels, the wood shrinks, twists, and causes the canvas to buckle diagonally.
Figure 2: Pneumatic lateral stretching bench applying uniform pull across all four sides, securing drum-tight canvas tension.
Kiln-Dried Timber & Moisture Testing:
We strictly utilize certified kiln-dried Russian pine or Canadian fir stretcher profiles. Prior to assembly, our QC technicians probe each batch with digital pinless moisture meters. We enforce a strict moisture content of 8% to 12%. Any timber exceeding 12% is rejected back to the drying chamber.
Pneumatic Stretching Tension & Cross-Bracing:
Hand-stretched canvas is inherently uneven. Decor Art Factory employs pneumatic stretching rigs that apply uniform lateral pull (12–15 N/cm) across the perimeter. For any canvas exceeding 100 cm, heavy-duty center cross-braces or mortise-and-tenon corner joints are installed to guarantee permanent diagonal stability.
Stage 4: Outer Framing Miter Precision & Hardware Pull-Testing
Whether assembling architectural extruded aluminum floater frames or high-density polystyrene (PS) woodgrain moldings, framing corners must be flawless.
- 45-Degree Miter Alignment: Automated CNC double-mitre saws cut frame lengths with a tolerance of ±0.1mm. After pneumatic V-nail corner pin insertion, the corner seam must show zero light transmission (gap <0.2mm).
- Shadow Gap Consistency: On floating frames, the recessed gap between the stretched canvas and frame interior must remain an exact 5mm across all four edges.
- Hardware Pull-Rating: Pre-installed heavy-duty D-rings, sawtooth hangers, or French cleats undergo mechanical pull-testing rated to support at least three times (3x) the total weight of the framed artwork, preventing liability risks in public hotel guestrooms.
Stage 5: Packaging Drop Tests & Container Palletization
A flawless framed print is worthless if it arrives at the client's distribution warehouse with dented corners or punctured cardboard.
Figure 3: Export packaging line fitting high-density molded EPE corner caps onto finished framed canvas art prior to 5-ply carton boxing.
ISTA-Standard Drop Testing:
Our packaging engineering follows international ISTA-1A package drop-testing protocols designed to reduce the risk of transit damage. Random production cartons are dropped onto solid concrete from heights of 80 cm to 100 cm across all 10 standard impact points (1 corner, 3 edges, 6 flat surfaces). The interior canvas artwork must emerge with zero surface contact, zero corner fracturing, and zero frame detachment.
Export Pallet Protection:
Cartons are stacked on heavy-duty, fumigated wooden pallets or honeycomb paper skids. Full-height vertical cardboard corner edge protectors are strapped around the perimeter, wrapped in 5 layers of waterproof stretch film, and secured with heavy-duty polyester strapping to eliminate in-transit shifting inside ocean shipping containers.
Factory Sourcing Specifications & Quality Audit Terms
We welcome third-party quality inspections (such as SGS, Bureau Veritas, QIMA, or buyer-appointed QC agents) at our facility:
- Facility Scale: 7,000+ ㎡ dedicated manufacturing campus with 21 Epson giclée lines.
- Inspection Access: 100% full access provided for in-line (DUPRO) and final random inspections (FRI) based on AQL 2.5 / 4.0 standards.
- Sample Turnaround: Pre-production physical quality proofs dispatched within 3–5 business days.
- Volume Bulk Production: Completed in 15–20 days.
- MOQ Standard: Starts from 50 pcs per order, supporting mixed artwork and size specifications.
Schedule a Factory Video Audit or Request QC Sample Kit
Contact our engineering team to review our full QC manual, schedule a live video factory tour, or request physical corner and canvas proofing samples for your upcoming project.
Get Factory QuoteFrequently Asked Questions (FAQ)
Do you accept third-party QC inspections (SGS, QIMA, BV)?
Yes. We regularly host third-party inspection agencies appointed by major global retailers and hospitality groups. We provide full access to production lines, raw material certificates, and testing stations based on standard AQL 2.5 / 4.0 inspection sampling.
How does the factory prevent canvas sagging over time?
We use automated pneumatic stretching machines that apply measured lateral tension across all four sides, combined with kiln-dried timber (8%–12% moisture content) and internal corner cross-braces for oversized formats, preventing humidity-induced sagging.
What is your color reproduction tolerance standard?
We calibrate our 21 Epson giclée printers daily using spectrophotometers, enforcing a strict Delta-E color variance under 1.5 against the approved master pre-production proof.
What drop-test standard does your export packaging meet?
Our packaging is engineered and drop-tested based on ISTA-1A standards, incorporating 5-ply reinforced corrugated cardboard and high-density molded EPE foam corner caps designed to reduce the risk of transit damage.
